Radium Raloduo Infrared Emitter.

Twin Tube Emitter.

Are you looking for a robust concept for emitters with maximum power?
We have got the solution for you!

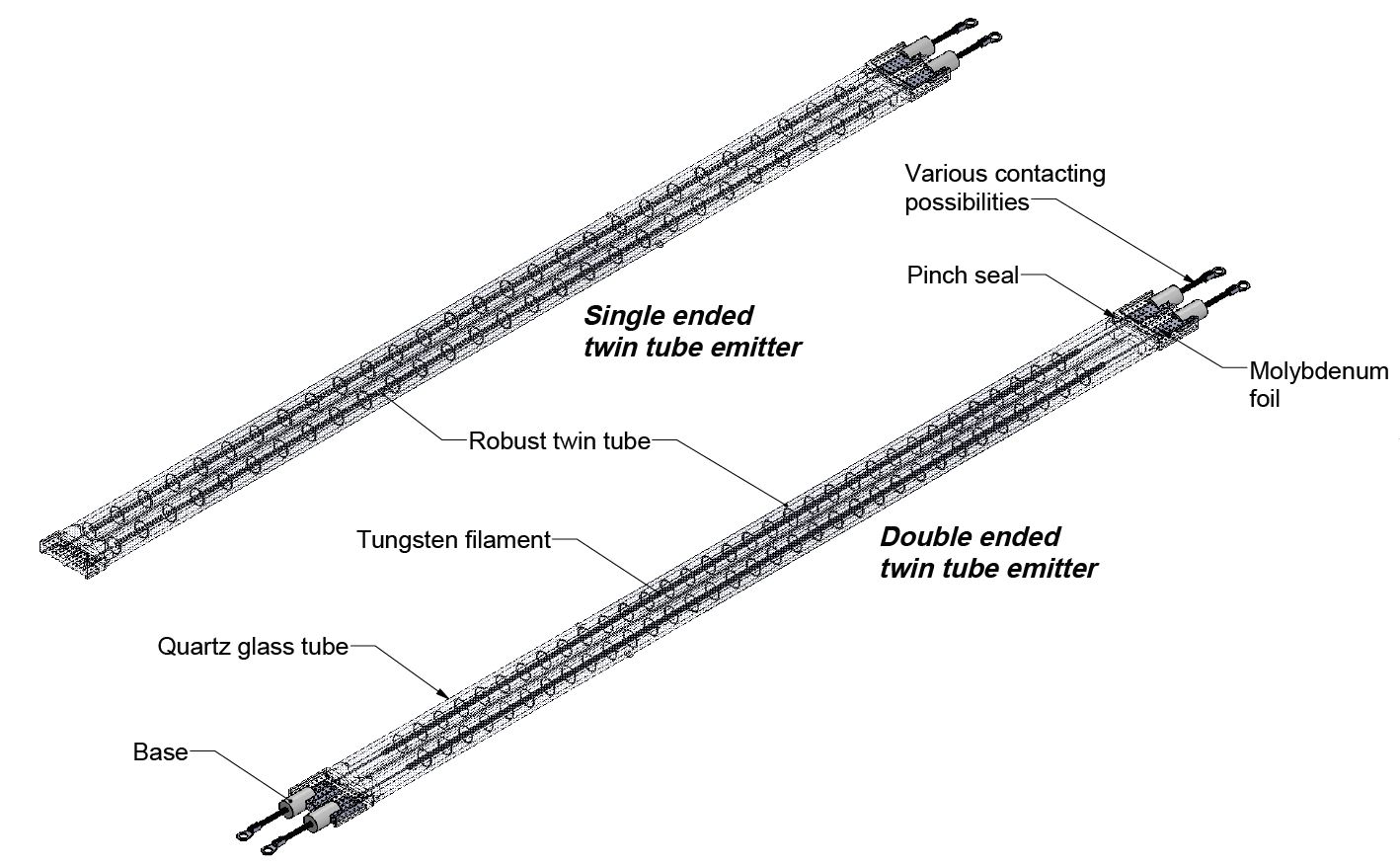

The twin-tube concept is particularly suitable for systems that require a strong bulb which can endure mechanical stress. Raloduo emitters can be used in two tube diameters and in lengths up to 1500mm. In addition, it is possible to contact these emitters either on both sides or one side - enabled by the twin tube concept, which is particularly advantageous for systems that are difficult to access.

Thanks to the guidance of the filament in the two sides, there are a multitude of segmentation possibilities to reproduce any radiation profile. Raloduo emitters achieve a line power of up to 250W/cm.

In addition to the high power densities, these emitters are offered in a wide wavelength spectrum including Ralotherm and Raloquick technology. On request, Raloduo emitters can also be coated with a reflector.

Let us convince you of our quality and contact us.
Together with our development team, we will also design the ideal emitter for your process!

Please find our contact details here.

Technical Data.

Geometry: quartz twin tube cross-section from 33×15mm or 23×11mm up to 1500mm length
Connection: Cable, metal lug, R7s or customised contacting
Connection type: one-sided or two-sided contacting
Wavelength: 0.95 to 2.3µm
Line power: up to 250W/cm

Filament in different segment variations:

At your request, the filaments can be segmented in many ways,
so that various power and radiation profiles can be displayed.

Application Examples.

Processing of polymers and thermoforming
Drying and heating
Processing of lacquers
Printing industry
Coating
Hardening
Bonding
Paper industry
3D Printing
Solar industry
